DC motor
stepper21.6 V24 V

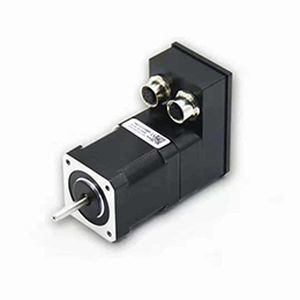

DC motor - CHONGQING PULSE ROBOT CONTROL SYSTEM CO., LTD. - stepper / 21.6 V / 24 V
DC motor - CHONGQING PULSE ROBOT CONTROL SYSTEM CO., LTD. - stepper / 21.6 V / 24 V

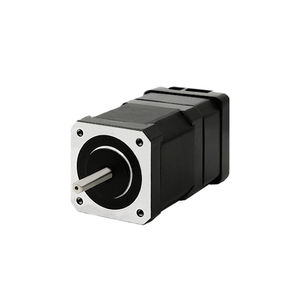

DC motor - CHONGQING PULSE ROBOT CONTROL SYSTEM CO., LTD. - stepper / 21.6 V / 24 V - image - 2

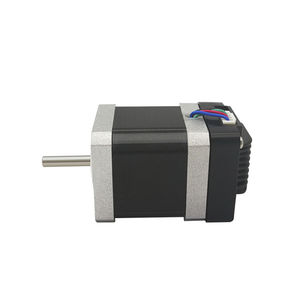

DC motor - CHONGQING PULSE ROBOT CONTROL SYSTEM CO., LTD. - stepper / 21.6 V / 24 V - image - 3
DC motor - CHONGQING PULSE ROBOT CONTROL SYSTEM CO., LTD. - stepper / 21.6 V / 24 V - image - 4
DC motor - CHONGQING PULSE ROBOT CONTROL SYSTEM CO., LTD. - stepper / 21.6 V / 24 V - image - 5
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Voltage
21.6 V, 24 V, 12 V, 48 V, 36 V, 18 V, 30 V, 43.2 V, 14.4 V, 40 V, 16 V, 20 V, 19.5 V, 15 V
Configuration
modular, micro
Applications
industrial
Other characteristics
NEMA, frequency, emergency
Torque

Min.: 0.17 Nm
(0.1254 ft.lb)

Max.: 8.7 Nm
(6.4168 ft.lb)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Open-loop integrated stepper motor with modbus is a modular product which is composed of PMC series micro drive controller and stepper motor. It can save installation space, optimize layout, protect function of abnormal feedback, realize smooth driving and high efficiency modbus networking mode. Host - PC,PLC,MCU Support motor - 2-phase stepper motor The development environment - VC C# Labviwe VB Linux Python The power supply voltage - DC12-48V Microstepping - 0/256adjustable Temp.Range - -20℃-80℃ Maximum pulse frequency - 200K Durability - Over 20,000 hours The input IO function - Emergency stop input, brake control, digital input/output, analog input, factory reset, 5V output The input specifications - Digital input voltage: 0-5V Analog speed regulation input voltage: 0-3.3V Emergency stop input voltage: 0-24V Control mode Control mode - Position mode, speed mode, PV mode, PP mode, PVT mode, analog speed regulation, analog positioning, synchronous positioning Mode switching - Specified instruction switching
