DC motor

stepper24 V12 V

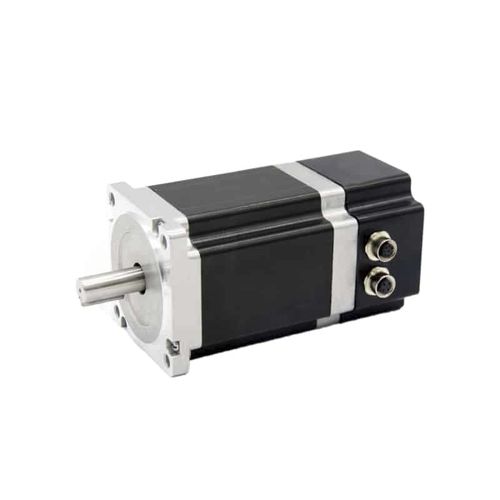

The PUSI's multi-turn absolute step integrated stepper motor PMC007CxSEP2M42 adopts the latest patented technology from PUSI. It can optionally support multi-turn absolute encoders, single-turn absolute encoders, and 200-2000CPR incremental encoders. The motor has no lost steps, high-precision control and memory for power-down position, no change is required, no sensor is used, closed air connector, combined with high-performance sealed processing to achieve IP64 waterproof; PMC007CxSEP2M42 multi-turn absolute stepper motor provides CAN-based bus control And a variety of models with different current levels, it is easy to implement an industrial control network system with up to 120 nodes, which not only greatly simplifies the complexity of the upper-level control system, but also retains the control flexibility to the greatest extent, suitable for various High precision, wide range of industrial applications. Host - PC,PLC,MCU Support motor - 2-phase stepper motor The development environment - VC C# Labviwe VB Linux Python The power supply voltage - DC12-48V Microsteppingt - 0-256adjustable Encoder type - Incremental Encoder resolution - Optional 200-2000, software 4 times frequency processing (commonly used 1000) Maximum pulse frequency - 200K Dimension - 86mm*86mm Durability - Over 20,000 hours The input IO function - Stop input, brake control, digital input/output, analog input, factory reset, 5V output. The input specifications - Digital input voltage: 0 to 5V Analog speed regulation input voltage: 0-3.3v Emergency stop input voltage: 0-24v
