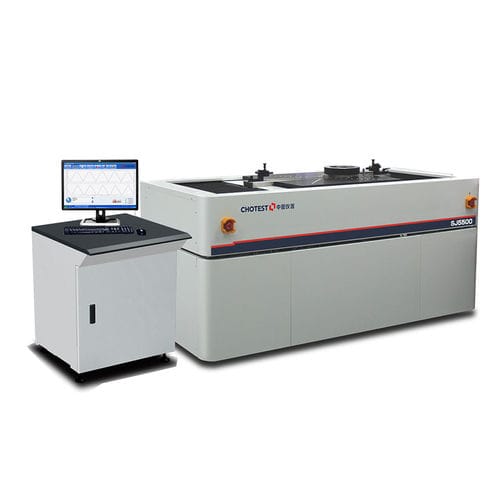

Thread measuring machine SJ5500-200

diametergeometrycontour

Item No.: SJ5500-200 Product name: SJ5500-200 Universal thread measuring machine Inside measuring range: 2.5~620mm Outside measuring range: 1.0~620mm Resolution: 0.01μm Max measuring length: 250mm Min thread pitch: 0.1mm Measuring force range: 0.04 ~ 0.15N Application: Measure all parameters of plug or ring gauge in 2~5 min. Manufacturer: Chotest Technology Inc. Functions 1. Full-automatic measurement for comprehensive parameters of cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges and other gauges with internal & external dimensions, including virtual pitch diameter , single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half of thread angle, flank straightness, lead angle, taper, etc. 2. Can measure trapezoidal thread gauges, buttress thread gauges, sawtooth thread gauges and other large-slope thread gauges. 3. Can measure comprehensive parameters of single thread and multiple thread. 4. Measure various thread gauges according to GB, ISO, BS, ANSI, DIN, JIS, API standards. With comprehensive and professional thread standards in database, it meets requirements of most customers. 5. Automatically generate test report according to selected standard. 6. After once measurement, the software can records various parameters of thread and display data of any position, in addition it generates the thread curve, relevant parameters and analysis chart automatically. 7. Measuring probe and workholder are identified automatically, which avoids collision of measuring probe caused by misoperation.
