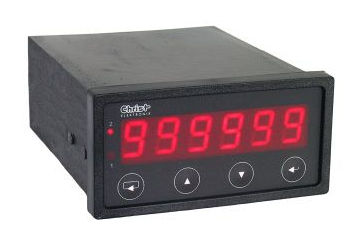

Multifunction measuring instrument 0 - 22 mA, Pt100, max. 250 V | CPM138panel-mount
Add to favorites
Compare this product
Characteristics
- Applications
- multifunction
- Other characteristics
- panel-mount
Description
For direct current 0 to11 V i.e. cocurrent flow 0 to 22 mA ( DC Module) (N)
Temperature measurement with thermoelements or Pt100-sensors (DC Module) (N)
Measurement of alternate current sizes up to 250 V i.e. 16A, regardless of signal form (AC Module) (A)
Measurement of active power, electricity, voltage, apparent power, idle power, active energy, apparent energy, idle energy (AC Module)
Or for 2 digital inputs for frequency measurement / occurrence counting (CF Module) (D)
User-sided via operation menu freely configurable
6-digit red LED-display
Optional: Analogue output or RS232-interface
