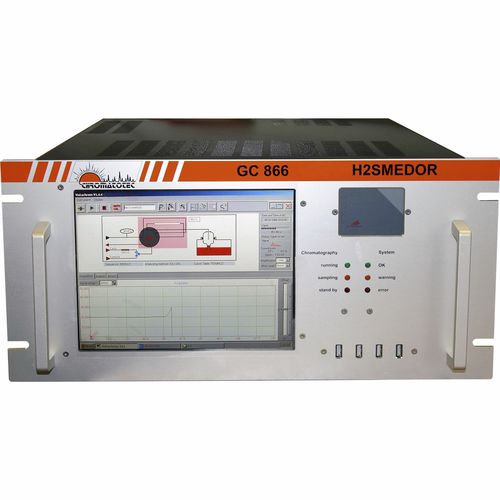

Gas chromatograph H2S MEDOR

laboratoryFIDelectrochemical

Analyser for continuous on-line monitoring of Hydrogen Sulphide Description : H2S Medor is an online Gas Chromatograph dedicated to the analysis of H2S present in different matrices. Two versions of the instrument exist : H2S Medor ppm (measuring at ppm levels) H2S Medor ppb (measuring at ppb levels) Principle : Internal pressure & temperature monitoring Sample loop injection is made by automatic valve H2S Medor uses a sulphur specific electrochemical cell for the detection of H2S Features : Online, continuous sampling No interference from other compounds Low maintenance instrument – detector life may be up to 10 years Automatic Validation of results by Internal Permeation Tube Modifiable threshold alarms – High / Low alarm for deodorising processes VISTACHROM ® software Chromatotec developed software system enables : Remote monitoring & injection control Full traceability with on board archiving of results and QC Set up and control of threshold alarms Export of data MODBUS / MGS1 / 4-20mA / 0-10V
