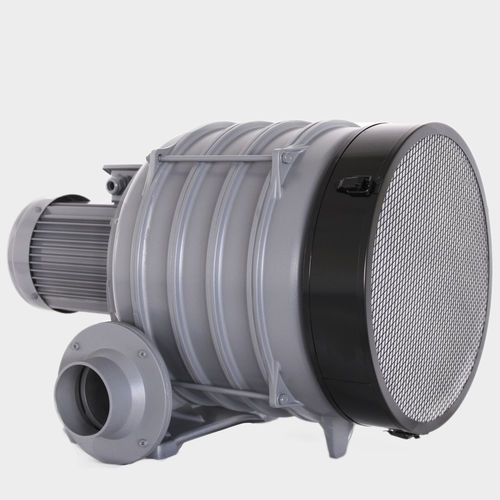

Multi-stage blower HTB SERIES
aircentrifugalcooling

multi-stage blower
multi-stage blower
multi-stage blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
centrifugal
Number of stages
multi-stage
Applications
cooling
Other characteristics
high-pressure, aluminum
Flow

Max.: 70 m³/min
(2,472.027 ft³/min)

Min.: 6 m³/min
(211.888 ft³/min)

Operating pressure

Max.: 26,000 Pa
(3.771 psi)

Min.: 2,100 Pa
(0.305 psi)

Nominal power

Max.: 7.5 kW
(10.197 hp)

Min.: 0.4 kW
(0.544 hp)

Description

Chuan Fan Electric multi-stage turbo blowers provide increased pressure and greater flow. They are lightweight due to the use of aluminum alloy material. The IEC designed motor with rated size of 1HP UP, squirrel cage induction motors & specially designed shaft result in continuous operation over long periods. A high-performance impeller ensures reduced noise and an improved service life. The design allows air-flow adjustment resulting in greater control and flow stability. The blowers are suitable for burning, printing, household, pollution, textile, dryer, cooling and woodworking machines. They can also be used in plastic extruders, lamination, and film making machines, incinerators, hot air blowers, grain elevators, dust collectors, and machineries used in food and beverage industries. Fast delivery is possible as every model has a complete range of styles and adequately finished products.
