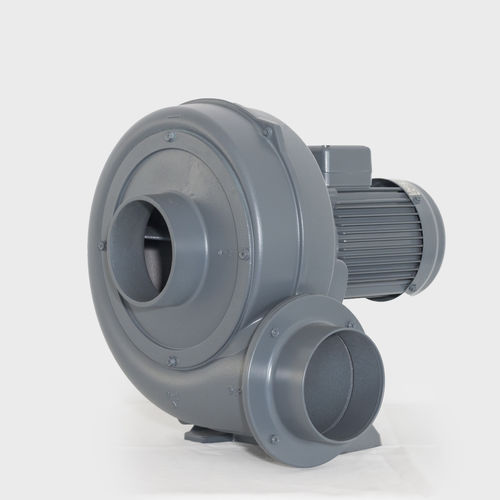

Air blower PF seriescentrifugalsingle-stageprocess
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- process, for vacuum, conveying, cooling, discharge, drying, for ventilation, for food applications, ignition, heavy-duty, for static charge elimination, furnace, transport, recirculation, for boiler
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
- Norms
- UL, CSA
- Energy class
- IE3, IE2
- Other characteristics
- oil-free, high-pressure, compact, aluminum, positive pressure, direct-drive, low-pressure, three-phase, negative pressure, medium-pressure
- Flow
Max.: 78 m³/min
(2,754.544 ft³/min)Min.: 5 m³/min
(176.573 ft³/min)- Operating pressure
Max.: 1.8 Pa
(0 psi)Min.: 0.5 Pa
(0 psi)- Nominal power
Max.: 5.5 kW
(7.478 hp)Min.: 0.12 kW
(0.163 hp)- Sound level
Max.: 99 dB
Min.: 72 dB
- Weight
Max.: 59 kg
(130.07 lb)Min.: 6 kg
(13.23 lb)- Length
Max.: 636 mm
(25.04 in)Min.: 282 mm
(11.1 in)- Depth
Max.: 620 mm
(24.4 in)Min.: 271 mm
(10.7 in)- Height
Max.: 586 mm
(23.1 in)Min.: 273 mm
(10.7 in)
Description
This radial blower plate fan is utilized in numerous applications including uniform temperature equipment, household machines, printing machines, textile machines, burning machines, laminating, plastic extruder, film making machines, hot air blowers, pollution machines, dust collectors, dryers machines, machinery for cooling, grain elevators, woodworking machines, incinerators and machinery for the food and beverage industries.
The lightweight plate fan offers high pressure and larger flow. The aluminum alloy material construction enables widespread use. Continuous long-term operation is ensured by the IEC designed motor (1HP UP), squirrel cage induction motors and specifically designed shaft. The professionally designed impeller provides a large flow, high pressure, long life and low noise. A stable flow and ease of control is offered by the special air-flow-adjust design. Quick delivery is possible due to the complete range of styles and finished products.
