DIN drill chuck 141 series
keylessEDM

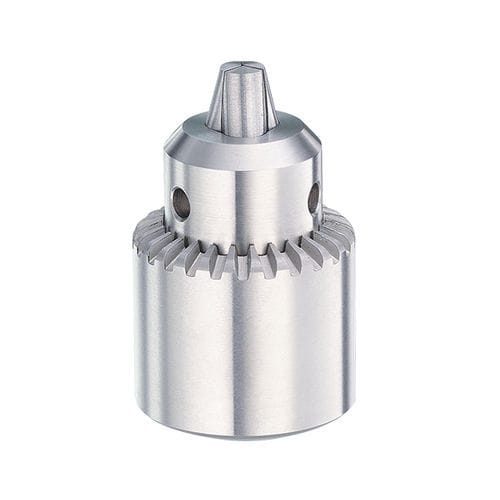

DIN drill chuck - 141 series - CHUMPOWER MACHINERY CORP - keyless / EDM
DIN drill chuck - 141 series - CHUMPOWER MACHINERY CORP - keyless / EDM
DIN drill chuck - 141 series - CHUMPOWER MACHINERY CORP - keyless / EDM - image - 2
Add to favorites
Compare this product


Characteristics

Machine mount
DIN
Clamping method
keyless
Other characteristics
EDM
Clamping range

Max.: 10 mm
(0.39 in)

Min.: 0.3 mm
(0.01 in)

Description

1.Used in eletric discharging machining(EDM). 2.For special application on chemical-mixing. 3.For special application on Food-mixing. 4.For special application on boat/ship-drilling. 1.Stainless material is applied to each Component. 2.Special design:Working smoothly. 3.Chemical surface treatment is Made for each component. 4.Anti-Corrosion(anti-rust) even if used in the enviroment of high acidity, high alkalinity or high humidity. 5.Radius design on slleeve; it would not rip the glove; therefore, minimizes the risk of Operator safety. 6.Smooth appearance:being Convenient for users. BA141040PJ101A Size: 4MTP Capacty inch: 1/64-5/32 Male Taper No. DIN orJaoobs: JT0 Length (mm) Open: 28 Length (mm) Closed: 36 Outer Dia (mm): 22 Weight (g): 50 BA141040PJ201A Size: 4MTP Capacty inch: 1/64-5/32 Male Taper No. DIN orJaoobs: 3/8-24UNF Length (mm) Open: 28 Length (mm) Closed: 36 Outer Dia (mm): 22 Weight (g): 50 BA141060HT101A Size: 6MTH Capacty inch: 1/64-1/4 Male Taper No. DIN orJaoobs: 5/16-24UNF Length (mm) Open: 40.5 Length (mm) Closed: 49 Outer Dia (mm): 28.5 Weight (g): 130
