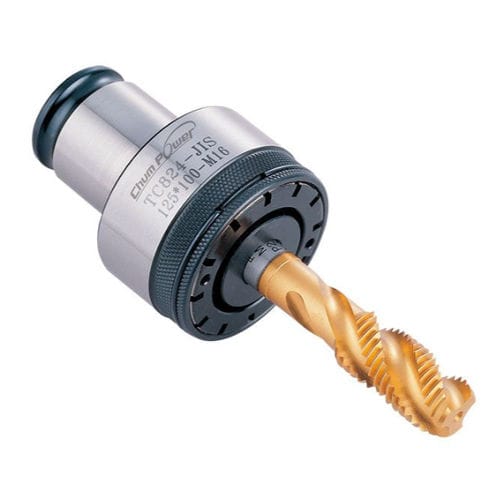

Collet tool holder TC-JIS Tap

tappingquick-changecustom

Overload Clutch is designed to prevent tap from breaking upon tapping. *Custom-Built products are available on request. Tap collets to be ordered separately. BA352JS020101A TC312 JIS Tap TC JIS Tap: M2 Tap Shank ØD: 3.0 Tap Shank: 2.5 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352JS030101A TC312 JIS Tap TC JIS Tap: M3, #5,#6 Tap Shank ØD: 4.0 Tap Shank: 3.2 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352JS040101A TC312 JIS Tap TC JIS Tap: M4, M4.5,#8 Tap Shank ØD: 5.0 Tap Shank: 4.0 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352JS050101A TC312 JIS Tap TC JIS Tap: M5, M5.5,#10 Tap Shank ØD: 5.5 Tap Shank: 4.5 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352JS060101A TC312 JIS Tap TC JIS Tap: M6, UNC1/4 Tap Shank ØD: 6.0 Tap Shank: 4.5 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352JS080101A TC312 JIS Tap TC JIS Tap: UNC5/16 Tap Shank ØD: 6.1 Tap Shank: 5.0 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32
