- Machine-tools
- Machine Tool Accessory
- DIN drill chuck
- CHUMPOWER MACHINERY CORP

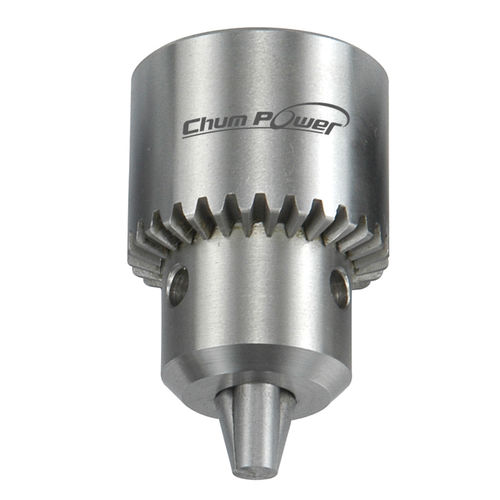

DIN drill chuck 129 serieskey typethread
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Clamping method
- key type
- Application
- thread
- Clamping range
Max.: 16 mm
(0.63 in)Min.: 0.3 mm
(0.01 in)
Description
1.Stainless material is applied to each component.
2.Special design:working smoothly.
3.Chemical surface treatment is made for each component.
* Custom-Built products are available on request.
BA129040PJ101A
Size: 4MTP
Capacty inch: 1/64-5/32
Male Taper No. DIN orJaoobs: JT0
Length (mm) Open: 28
Length (mm) Closed: 36
Outer Dia (mm): 23
Weight (g): 50
BA129060PJ201A
Size: 6MTP
Capacty inch: 1/64 - 1/4
Male Taper No. DIN orJaoobs: JT1
Length (mm) Open: 40.5
Length (mm) Closed: 49.7
Outer Dia (mm): 31
Weight (g): 125
BA129060HT201A
Size: 6MTH
Capacty inch: 1/64 - 1/4
Male Taper No. DIN orJaoobs: 3/8-24UNF
Length (mm) Open: 40.5
Length (mm) Closed: 49.7
Outer Dia (mm): 31
Weight (g): 130
BA129100PJ401A
Size: 10MTP
Capacty inch: 1/64-3/8
Male Taper No. DIN orJaoobs: JT2S
Length (mm) Open: 51
Length (mm) Closed: 63
Outer Dia (mm): 39
Weight (g): 250
