- DIN drill chuck
- CHUMPOWER MACHINERY CORP

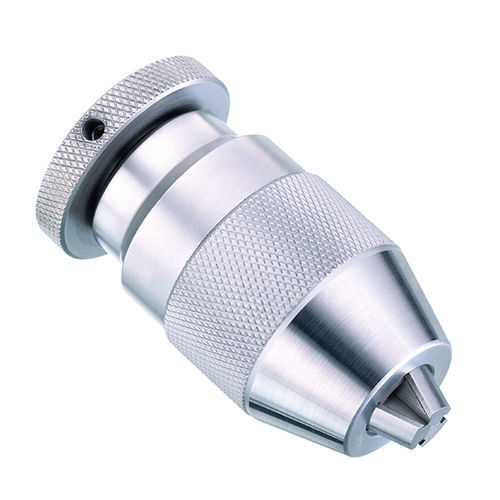

DIN drill chuck 130 serieskeylesskey typethread
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Clamping method
- key type, keyless
- Application
- thread
- Clamping range
Max.: 6.5 mm
(0.26 in)Min.: 0.3 mm
(0.01 in)
Description
(Used in electric dis charging machining)
*Custom-Built products are available on request.
BA13003300002A
Size: 3S
Capacty inch: 1/64-1/8
Male Taper No. DIN orJaoobs: JT0
Length (mm) Open: 44
Length (mm) Closed: 47.5
Outer Dia (mm): 24
Weight (g): 110
BA13003300003A
Size: 3S
Capacty inch: 1/64-1/8
Male Taper No. DIN orJaoobs: JT1
Length (mm) Open: 46
Length (mm) Closed: 49.5
Outer Dia (mm): 24
Weight (g): 110
BA13006300001A
Size: 6S
Capacty mm: 0.3-6.5
Capacty inch: 1/64-1/4
Male Taper No. DIN orJaoobs: JT1
Length (mm) Open: 63
Length (mm) Closed: 69.5
Outer Dia (mm): 33
Weight (g): 300
BA13008300002A
Size: 8S
Capacty inch: 1/64-5/16
Male Taper No. DIN orJaoobs: JT1
Length (mm) Open: 70
Length (mm) Closed: 77
Outer Dia (mm): 38
Weight (g): 425
BA14003300001A
Size: 3S
Capacty inch: 1/64-1/8
Male Taper No. DIN orJaoobs: JT0
Length (mm) Open: 44
Length (mm) Closed: 47.5
Outer Dia (mm): 24
Weight (g): 110
BA14003300002A
Size: 3S
Capacty inch: 1/64-1/2
Male Taper No. DIN orJaoobs: JT1
Length (mm) Open: 46
Length (mm) Closed: 49.5
Outer Dia (mm): 24
Weight (g): 110
BA14006300001A
Size: 6S
Capacty inch: 1/64-1/4
Male Taper No. DIN orJaoobs: JT1
Length (mm) Open: 63
Length (mm) Closed: 69.5
Outer Dia (mm): 33
Weight (g): 300
