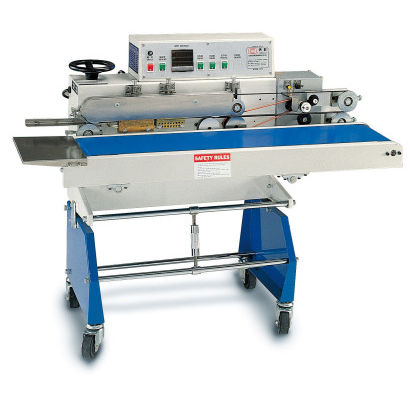

CC-7202
PATENT-NO.198076
This unit is designed for medium content bag sealing operation.
Conveyor table tilts 0°–20° downward, allowing products to concentrate at bag bottom that prevent product flowing out.
Equipped with printer for printing manufacture date, expiry date, lot number and weight…etc.
Single or double lines printing.
Fully gear drive assures long service life and superior sealing quality.
Comprehensive safety guards.
Height of sealing head from floor 730mm. Ergonomically designed to minimize fatigue.
Ideal for sealing dry powder, solid goods, hardware kits,stationery,electronic parts, and medical instruments. Bag length range 4–30cm. (Increased conveyor width is available).
CC-7203
A version model from CC-7202 same features as that, but without the date coder.
Fully gear drive assures long service life and superior sealing quality.
Specification
Model - CC-7202 -
Max.conveyor belt load - 20 kg
Stainless steel band size (W×L) - 10×1080 mm
Conveyor belt size (W×L) - 200×2250 mm
Nylon band (W×L) - 5×1250 mm - 5×690 mm
Conveyor speed - 10 M/min
Conveyor table tilts - 0°–20°
Electricity - 110/220 V, 1PH
Power - 1050 W
Motor - 1/4HP
Conveyor table height adjustment - 0–70 mm
Heating temp range - 0–399 ℃
N.W/G.W - 100/130 kg
Machine dimensions (L×W×H) - 130×55×100 cm
Packing dimension (L×W×H) - 130×65×115 cm
