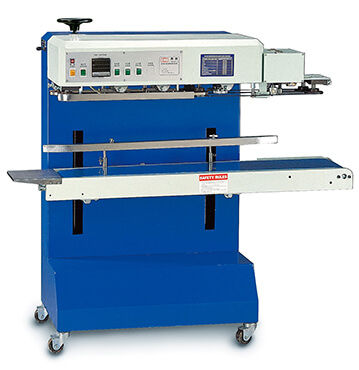

Continuous heat sealer CC-7207

automaticfor bag closingfor heavy-duty applications

CC-7207 Description PATENT-NO.198076/114403 The second heaviest model in vertical sealing series. Well suited for heavy content bag sealing. Power conveyor table raising available upon request. Raising or lowering is stopped by limit switches at the end. Bag height range 10–60cm. Fully gear drive assures long service life and superior sealing quality. Comprehensive safety guards. Vertical sealing principle especially suited to seal content such as hardware kits, liquid, powder, glue and oily products…etc. Specification Max.conveyor belt load - 20 kg Steel band size (W×L) - 10×1330 mm Conveyor belt size (W×L) - 200×2700 mm Nylon band (W×L) - 5×1250 mm Conveyor speed - 10 M/min Electricity - 110/220 V, 1PH Power - 1050 W Motor - 1/4HP Conveyor table height adjustment - 100–500 mm Heating temp range - 0–399 ℃ N.W/G.W - 150/225 kg Machine dimensions (L×W×H) - 145×55×150 cm Packing dimension (L×W×H) - 155×72×165 cm
