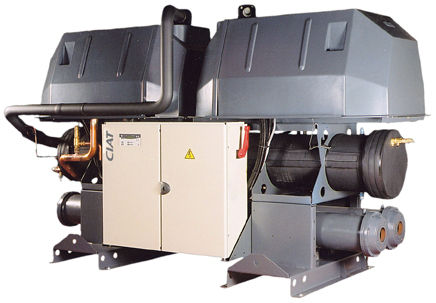

Water chiller HYDROCIAT LW

compactair-cooled

Use : The new generation of HYDROCIAT air-cooled water chillers provides an optimal solution to all cooling applications in offices, healthcare facilities, commercial premises, industrial facilities and apartment buildings. These units are designed to be installed inside a plant room protected from freezing temperatures and bad weather conditions This new range is optimised to run with the ozone-friendly HFC refrigerant R134A. They thereby meet the most demanding specifications in terms of environmental protection and high seasonal energy efficiency (ESEER) requirements. Description : R-134A refrigerant Compact design and small footprint for convenient indoor installation RAL 7024 metal housing 2 independent refrigerant circuits 2 double screw compressors complete with oil seperator and Star Triangle start up. Shell-and-tube dry-expansion evaporator equipped with a water flow switch Electrical cabinet complete with remote-control transformer, safety switch, wire numbers and identifications of the locations of main electrical components Controlled by CIAT's multilingual XtraCONNECT 2 PLC with many anticipatory functions and master/slave control of two machines Communication with BMS via an RS-485 interface (Modbus/Jbus and Ethernet as standard - LON as option)
