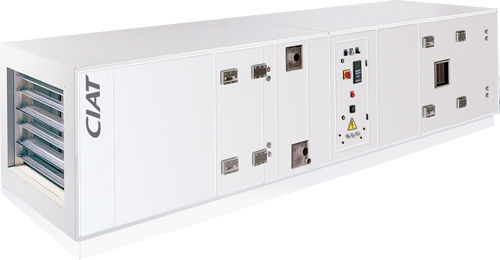

Horizontal air handling unit AIRCLEAN

single-flow

Double-skin casing with 50 mm long-fibre mineral wool insulation, peripheral frame ensures hygienic ventilation, internal and external panels coated with RAL 7035 finish, smooth internal walls without protruding screws as required by EN 13053 Flat or sloped stainless steel bottom Inward-opening doors placed downstream of fan, double-groove doors lined with EPDM gaskets, offset hinges, handles with latches made from composite materials Large square inspection window as required by EN 13053, dual seal provided by a one-piece boot At least one removable panel per functional section as required by EN 13053, standard access panel on functional sections requiring maintenance Filter efficiency: G2 to H14 or activated carbon. International dimensions. Filter mounted on compressable runners. Universal or large-media frame with pressure tappings on each filtration stage. Filter assembly adapted to each filtration stage. Filter class F9 in accordance with EN 13053 Ultra-high unit filtration requirements (bag-type HEPA filter in large-media frame) Hygiene-grade stainless steel condensate drain pan (sloped on all four sides), does not touch sloped coil as required by EN 13053 Hot-water or cold-water coils with threaded connections as standard (up to 3") and airtight sealing flanges, thermal break between casing and tubes, electric heater Plug fans with high-efficiency airfoil blades, air flow control and internal flexible connection sleeve Fitted with cable gland for electrical power supply Steam humidifier Class 3 damper
