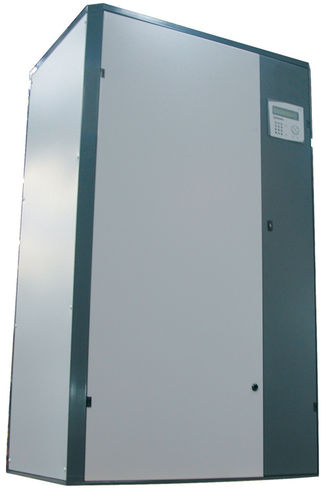

Floor-standing air conditioner EXPAIR

industrial

Use : Specially designed for the air-handling needs in small and medium-size corporate data centres. Description : Packaged unit (CW) or split-system unit (DXA) Double-skin panels lined with compressed glass wool, exterior with RAL 7035 painted finish G4 filter as standard. F7 filter or G4+F7 combined filter optional. Chilled-water coil fitted with two-way or three-way valve (CW) Direct-expansion cooling coil, one or two refrigerant circuits, one or two scroll compressors, R410A refrigerant, with CL air-cooled condenser with condensing pressure controlled by the fan speed One to three direct-drive centrifugal fans, variable frequency drive Heating provided by hot-water coil or electric heater, Steam humidifier (1 to 8 kg/h) Complete electrical cabinet can be fitted with or without a CIAT µAIRCONNECT or Carel electronic controller. Condensate pump optional Continuously monitors the air flow and filter blockage level
