Impact crusher Type IIA
stationarysand productionhorizontal-shaft

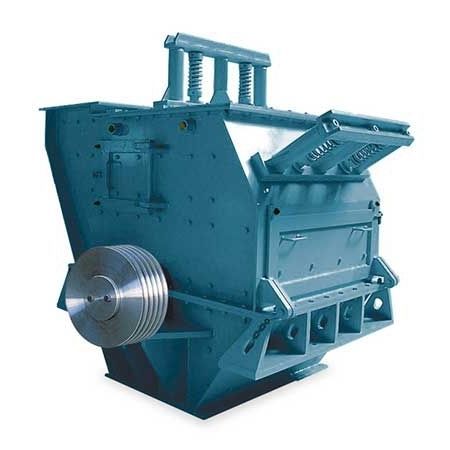

Impact crusher - Type IIA - CIMMA - stationary / sand production / horizontal-shaft
Impact crusher - Type IIA - CIMMA - stationary / sand production / horizontal-shaft
Impact crusher - Type IIA - CIMMA - stationary / sand production / horizontal-shaft - image - 2
Impact crusher - Type IIA - CIMMA - stationary / sand production / horizontal-shaft - image - 3
Impact crusher - Type IIA - CIMMA - stationary / sand production / horizontal-shaft - image - 4
Add to favorites
Compare this product


Characteristics

Technology
impact
Mobility
stationary
Other characteristics
primary, compact, for building materials, fine, sand production, coal, for all materials, horizontal-shaft
Capacity

Min.: 12 t/h
(7.3 lb/s)

Max.: 120 t/h
(73.5 lb/s)

Motor power

Min.: 30 kW
(40.79 hp)

Max.: 110 kW
(149.56 hp)

Opening lenght

770 mm, 880 mm, 1,070 mm
(30.3 in, 34.6 in, 42.1 in)

Weight

2,350 kg, 5,600 kg, 7,200 kg, 10,000 kg
(5,180.86 lb, 12,345.89 lb, 15,873.28 lb, 22,046.23 lb)

Description

Production of granulates and sand of medium hardness rocks. Primary crusher for clay, kaolin, scraps of refractory material, bricks, grog, glass scraps, foundry slags, salts, lime, cement and gypsum. • BUILDING INDUSTRY • MINING INDUSTRY • CERAMIC INDUSTRY • GLASS INDUSTRY • INDUSTRIAL WASTE • LIME, GYPSUM, CEMENT • BRICKS AND TILES INDUSTRY • FOUNDRY The Impact Crusher with swinging armour plates is classified among hammer mills but, in comparison with these, it offers the following advantages: • Less wear of armour plates and hammer • Less production of fine powders • Possibility of processing even moist raw materials without obstruction, as there is normally no grate • Possibility of feeding large size raw materials (200÷500 mm) • Casing of welded steel plate, fully protected by wear resistant steel plates • Large rotor with 4 hammers, cast in wear resistant chromium alloy or manganese steel • Very strong and compact construction • Very easy maintenance • Small overall dimensions • Possibility of adjusting the size of the product by varying the position of the armour plates and the speed • The machine cannot be obstructed by damp materials • The crusher can be supplied with special bar grate to obtain products with controlled granulometry, only for dry materials
