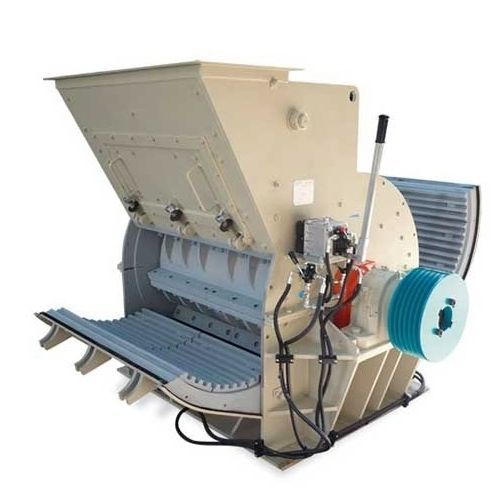

Hammer mill COMBI BS series
horizontalwastefor ceramics

hammer mill
hammer mill
hammer mill
hammer mill
Add to favorites
Compare this product


Characteristics

Technology
hammer
Orientation
horizontal
Product applications
waste, for ceramics, building materials, mineral
Sector
for the chemical industry
Final grain size

Max.: 3,000 µm
(0 in)

Min.: 1 µm

Rotational speed

Max.: 1,200 rpm
(7,540 rad.min-1)

Min.: 800 rpm
(5,027 rad.min-1)

Output

Max.: 70 t/h
(43 lb/s)

Min.: 20 t/h
(12 lb/s)

Motor power

Max.: 160 kW
(217.54 hp)

Min.: 75 kW
(101.97 hp)

Sound pressure

95 dB

Machine length

1,810 mm, 2,240 mm
(71 in, 88 in)

Machine width

1,230 mm
(48 in)

Machine height

1,370 mm, 1,770 mm
(54 in, 70 in)

Machine weight

3,700 kg, 3,800 kg, 5,800 kg, 6,000 kg
(8,157 lb, 8,378 lb, 12,787 lb, 13,228 lb)

Description

Typical applications • Clay • Grinding of ceramic bodies with moisture content less than 7% for bricks, roof tiles and other ceramic products, where a granulometry 0,6÷2 mm is required. Classification is obtained with vibrating screens. • In many cases the COMBI mill can grind the oversize from the screens • Pre-grinding of clays before fine grinding with pendular mills • The high percentage of useful product produced directly by the COMBI mill, contributes to the best performance of the plant • Waste of bricks, tiles, chamotte • For addition to ceramic bodies. • Calcium carbonate, marble, dolomite • Production of sands with optimal granulometry distribution for successive classification for premixed dry mortars. • Waste of various industrial product • Refractories, glass, ceramic products, recycling in the new production. • Other products • Calcium oxide, hydrated lime, chemical products, petroleum coke, metal alloys. • Casing of welded sheet of high thickness protected inside by interchangeable elements. Two service doors, which can be quickly opened by means of a hydraulic system, allow the easy replacement, in safety conditions, of wear parts • Changeable impact plate for the first size reduction, cast in a wear resistant alloy, mounted on a swinging arm in model BS 11 and BS 22. Models BSR 11 and BSR 22, without this plate, have smaller dimensions in height and accept feed product up to 50÷80 mm
