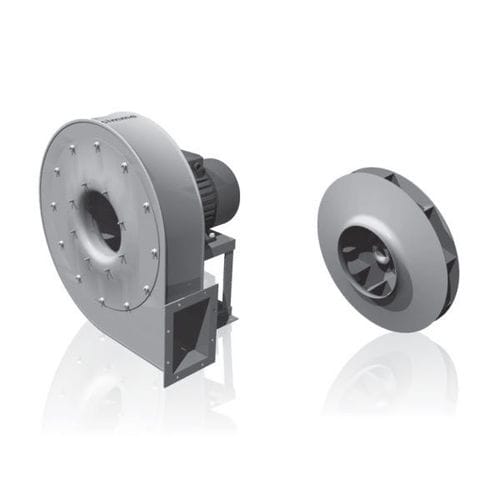

Centrifugal fan GCH series

extractionsuctionfor pneumatic conveying

Sizes: 350 .. 560 Delivery: 6 .. 112 m³/min Total pressure: 151 .. 621 kgf/m² Installed motor power: 0,75 .. 11 kW Admitted fluid: Very dusty air Maximum working temperature: +80°C (+150°C *) For suction of very dusty air. The main feature of this series is the association of high efficiency (due to the use of an impeller with overturned blades, special profile) with the suction of dusty fluids or with granulated materials. They are installed in joinery workshops (to convey sawdust and wood chips – excepting filamentous materials), in mechanic industries (suction of metal trimmings and grinding chips), in pneumatic conveying at cement, ceramics, milling factories, tanneries, foundries, textile and chemical industries and in all applications where poisonous air needs to be conveyed at low and medium pressure. *) +150 °C with cooling fan
