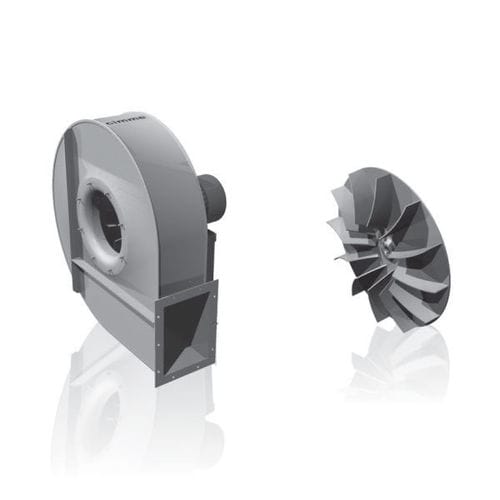

Centrifugal fan GBT seriessuctionfor dust collectorsmedium-pressure
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- suction
- Applications
- for dust collectors
- Other characteristics
- medium-pressure
- Air flow
Max.: 315 m³/min
(11,124.12 ft³/min)Min.: 45 m³/min
(1,589.16 ft³/min)
Description
Sizes: 630 .. 900
Delivery: 45 .. 315 m³/min
Total pressure: 138 .. 330 kgf/m²
Installed motor power: 4 .. 22 kW
Admitted fluid: Very dusty air and materials
Maximum working temperature: +80°C (+150°C *)
For suction of very dusty air with various suspended materials. The fans included in this series are largely used in the following industries: joinery workshops (for conveying of sawdust and wood chips), tanneries (for conveying of leather trimmings and shavings), factories processing plastic materials (for conveying of granulated materials).
*) +150 °C with cooling fan
