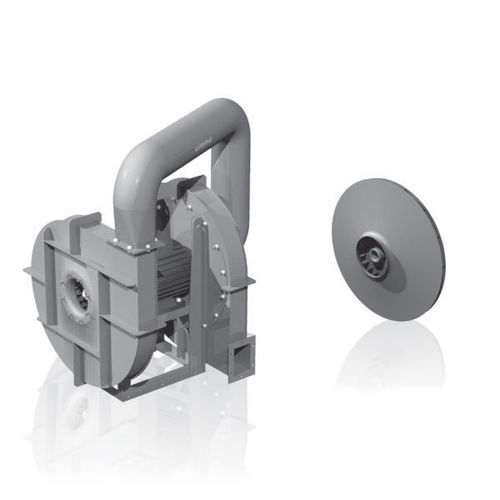

High-pressure fan GBK seriescentrifugaldryingsuction
Add to favorites
Compare this product
Characteristics
- Type
- high-pressure
- Configuration
- centrifugal
- Function
- drying, suction
- Applications
- for chemical applications, for pneumatic conveying
- Other characteristics
- multi-stage
- Air flow
Min.: 10 m³/min
(353.147 ft³/min)Max.: 400 m³/min
(14,125.867 ft³/min)
Description
Sizes: 630 .. 1120
Delivery: 10 .. 400 m³/min
Total pressure: 1405 .. 5001 kgf/m²
Installed motor power: 7,5 .. 315 kW
Admitted fluid: Dusty air
Maximum working temperature: +80°C (+150°C *)
For suction of clean and dusty air. These two-stage fans provide a high efficiency allowing to save electric power thanks to the special impellers with overturned blades. They are used to oxygenate impure waters, for pneumatic conveying, in cement factories, foundries, mills, pasta factories, dying factories (in wool rapid drying), in ceramics factories (pneumatic cleaning of work premises), in chemical, siderurgical and metallurgical industries where fans with low and medium flow rates and very high pressure are required.
*) +150 °C with cooling fan
