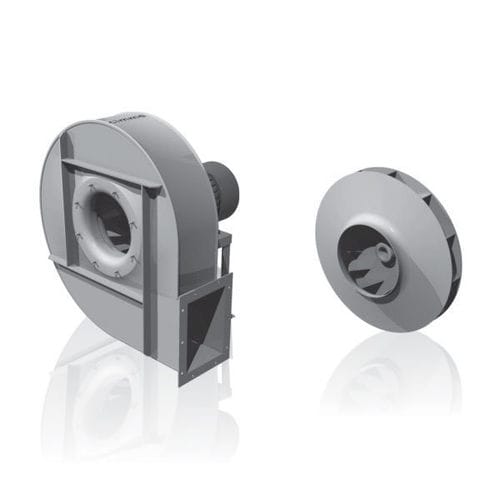

High-pressure fan GBJ seriescentrifugalsuctionindustrial
Add to favorites
Compare this product
Characteristics
- Type
- high-pressure
- Configuration
- centrifugal
- Function
- suction
- Applications
- industrial, for pneumatic conveying
- Other characteristics
- medium-pressure
- Air flow
Max.: 900 m³/min
(31,783.2 ft³/min)Min.: 7 m³/min
(247.203 ft³/min)
Description
Sizes: 500 .. 1120
Delivery: 7 .. 900 m³/min
Total pressure: 112 .. 2800 kgf/m²
Installed motor power: 1,5 .. 250 kW
Admitted fluid: Dusty air
Maximum working temperature: +80°C (+150°C *)
For suction of clean and dusty air. These high pressure fans offer high efficiency and saving of electric power thanks to a special impeller with negative (overturned blades). They are used for pneumatic conveying, in cement factories, in air feeding of cupolas, in foundries and in diesel oil burners, in mills, pasta factories, chemical, siderurgical and metallurgical industries where the fans with low flow rates and medium and high pressure are required.
*) +150 °C with cooling fan
