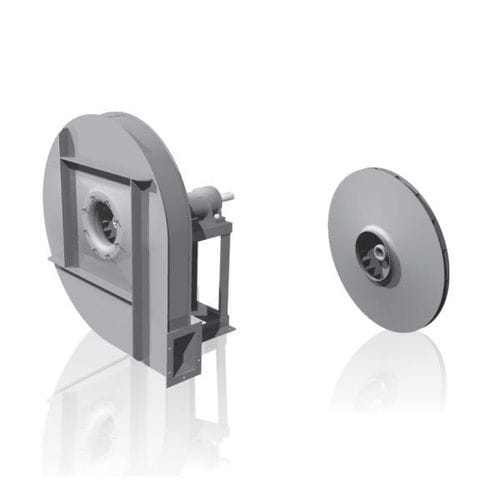

High-pressure fan GFI seriescentrifugalsuctionfor chemical applications
Add to favorites
Compare this product
Characteristics
- Type
- high-pressure
- Configuration
- centrifugal
- Function
- suction
- Applications
- for chemical applications, for pneumatic conveying
- Other characteristics
- medium-pressure, belt-driven
- Air flow
Max.: 542 m³/min
(19,140.549 ft³/min)Min.: 2 m³/min
(70.629 ft³/min)
Description
Sizes: 350 .. 1120
Delivery: 2 .. 542 m³/min
Total pressure: 122 .. 1860 kgf/m²
Admitted fluid: Dusty air
Maximum working temperature: +90°C (+350°C *)
For suction of dusty air. Largely used for pneumatic conveying, in cement factories, in air feeding of cupolas, in foundries and in diesel oil burners, in mills, pasta factories, chemical, siderurgical and metallurgical industries where fans with low flow rates and medium and high pressure are required.
*) +350 °C with cooling fan
