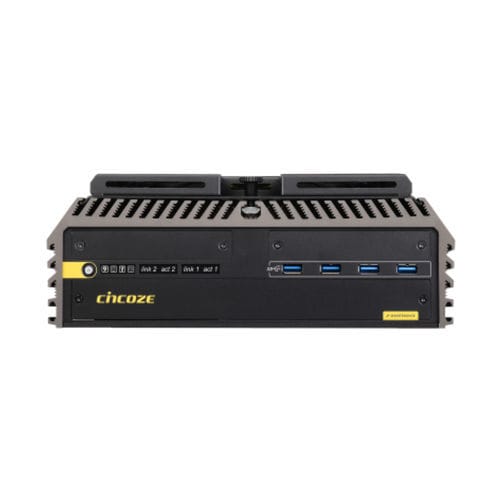

GPU computer GM-1000

embeddedIntel® Celeron® G4900Intel® Celeron G4900T

Many computers struggle to handle the high-speed image capture and processing demands of machine vision applications. Both CPU computing power and GPU graphics acceleration are needed because the combination provides the fastest and most accurate results for image processing and data analysis, improving productivity and efficiency. Machine vision is an essential element of automatic inspection, process control, and robot guidance. The Cincoze GM-1000 is a machine vision computer designed for machine vision applications, but with enough extra for artificial intelligence and image processing. All this in a tough, compact, and reliable package. 34% Faster Core Performance —— Intel® Xeon® and Core™ (8/9th gen) CPU options with up to 8 cores, deliver 34% more performance than previous generations and support up to 128 GB of DDR4 memory. MXM GPU Expansion —— GPUs are the key to super-fast image processing. The MXM 3.1 Type A/B expansion slot supports modern MXM GPUs. Standard options are an Nvidia Quadro RTX3000/T1000 or AMD Radeon E9174 GPU, but upgrades to even faster MXM GPUs (up to 160 W) can further accelerate performance. Generous 360W Power Budget Core Performance —— The specialized power design of the GM-1000 provides a 360W power budget that counters the typical limitations of fanless embedded systems. A unique thermal design, combining independent cooling systems for CPU and GPU and extruded aluminum case with integrated copper heat piping, ensure operational reliability in the field.
