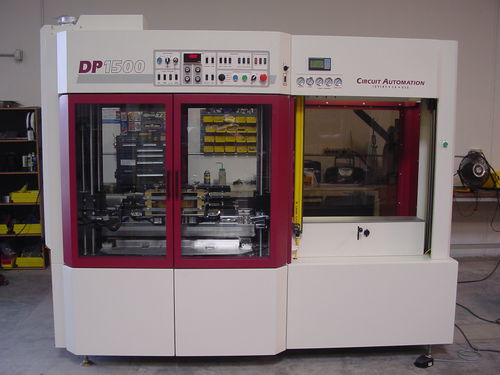

Photosensitive resin coating machine DP1500-2XL

for PCB

The DP-1500 series of coating machines are the ideal choice for coating liquid photoimageable ink on printed circuit boards. DP-1500’s are used to apply all types of liquid photoimageable inks including soldermask, primary image, dielectric, and legend. These versatile machines are used all over the world in a variety of applications. The guidelines presented in this manual come from years of experience in coating panels. This manual is intended as a training and reference source for anyone who operates and/or maintains the Circuit Automation DP-1500-2X and DP-1500-2XL Dual-Sided Photoimageable Ink Coaters. It gives the correct procedures for the installation, start-up, operation, and shutdown of the DP-1500. Also included are pictures, diagrams, and reference information to assist operators and maintenance personnel in completing their work safely and efficiently. Keep it on hand and use it for reference whenever you are working with the DP-1500.
