Current control relay WI series

for electric motorsfor pumpDIN rail

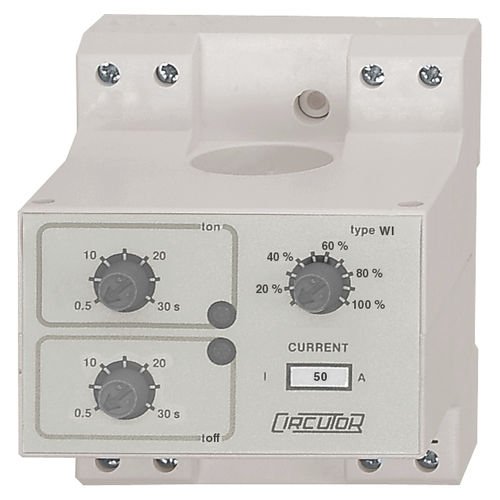

The WI current detectors are electronic devices with an output relay that is connected or disconnected, in accordance with the level of current detected in the circuit. The trip level is adjusted with the potentiometer on the front of the unit. The reset process is automatic with currents under 10% of the trip level (Hysteresis). Delay: the connection and disconnection times of the output relay can be adjusted separately. Measurement of the current, depending on the type: With built-in current transformer (net diameter ∅ 25 mm) Separate transformer, input.../5 A ac Applications WIs can be used in any application that needs to control the load: Power supply units for grinders or aggregate grinding units. Loads in extrusion machines Pump control Load on motors, etc
