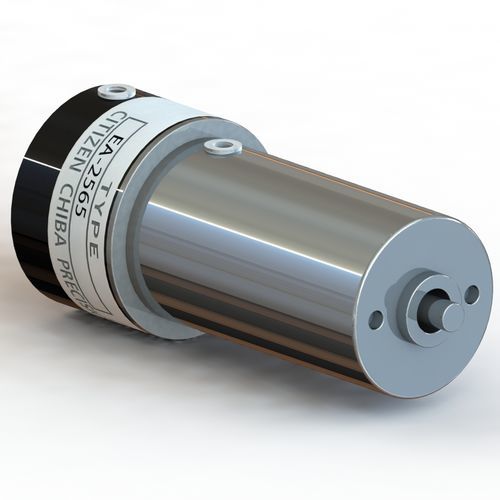

Miniature servomotor EA-2565ACbrushlessmaintenance-free
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- brushless
- Protection class
- maintenance-free
- Configuration
- permanent magnet, slotless, compact, miniature
- Cooling mechanism
- air-cooled
- Other characteristics
- high-precision, low-vibration, low-speed
- Power
12 W
(0.016 hp)- Torque
0.0235 Nm, 0.0588 Nm
(0.0173 ft.lb, 0.0434 ft.lb)- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Diameter
25 mm
(0.98 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description
Use of Nd magnets allows excellent responsiveness and high output in a compact size.
The rotor is evenly balanced to suppress mechanical vibrations.
Uses slotless coils which prevent cogging and allow smooth revolutions, even at low speeds.
Miniaturization and inclusion of a high pulse encoder means highly precise positioning is possible.
Lack of brush means no maintenance required
Distance between motor & driver extendable up to 10m (if using line driver specifications)
Catalogs
Miniaturized AC Servomotors
16 Pages
