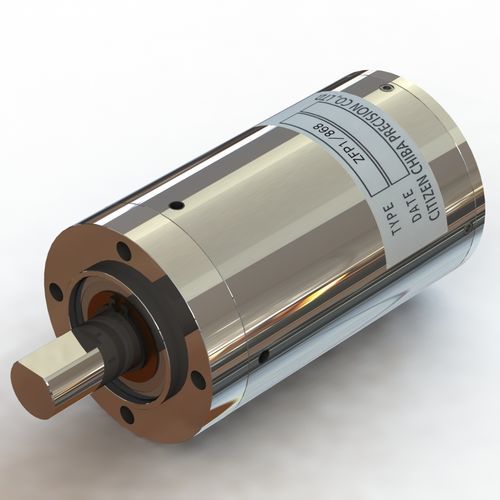

Planetary gearhead ZFP Series
coaxial1 - 5 Nm5 - 10 Nm

Planetary gearhead - ZFP Series - CITIZEN CHIBA PRECISION CO., LTD. - coaxial / 1 - 5 Nm / 5 - 10 Nm
Planetary gearhead - ZFP Series - CITIZEN CHIBA PRECISION CO., LTD. - coaxial / 1 - 5 Nm / 5 - 10 Nm
Planetary gearhead - ZFP Series - CITIZEN CHIBA PRECISION CO., LTD. - coaxial / 1 - 5 Nm / 5 - 10 Nm - image - 2
Planetary gearhead - ZFP Series - CITIZEN CHIBA PRECISION CO., LTD. - coaxial / 1 - 5 Nm / 5 - 10 Nm - image - 3
Planetary gearhead - ZFP Series - CITIZEN CHIBA PRECISION CO., LTD. - coaxial / 1 - 5 Nm / 5 - 10 Nm - image - 4
Add to favorites
Compare this product

Go to the CITIZEN CHIBA PRECISION CO., LTD. website for more information

Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
1 - 5 Nm, 5 - 10 Nm
Configuration
compact
Performance
low-noise
Rotational speed

7,000 rpm
(43,982.3 rad.min-1)

Power

Max.: 16 W
(0.02 hp)

Min.: 8 W
(0.01 hp)

Backlash

1.5 °

Gear ratio

Max.: 868.44 unit

Min.: 5.43 unit

Description

・High output, compact, lightweight, capable of high reduction ratio ・Minimal backlash ・Low noise and low vibration
