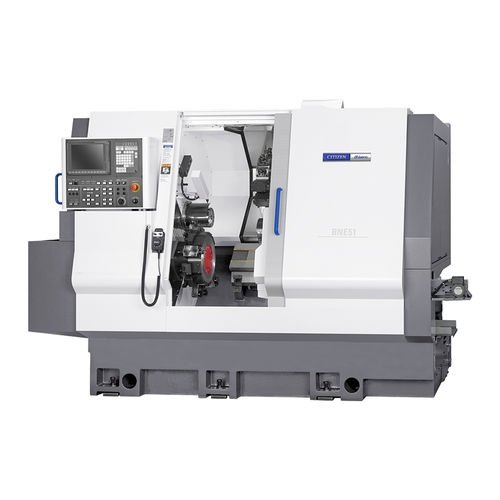

CNC automatic lathe BNE51MSY3-axis2-spindle12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of spindles
- 2-spindle
- Number of tool stations
- 12 tools
- Turret
- double-turret
- Applications
- for bar machining
- Diameter
51 mm
(2.01 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Maximum part length
90 mm
(4 in)- Axe X
155 mm, 195 mm
(6 in, 8 in)- Axe Z
175 mm, 380 mm, 450 mm
(7 in, 15 in, 18 in)- Nominal power
5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.5 hp, 10.2 hp, 15 hp, 20.4 hp)- Overall lenght
2,725 mm
(107 in)- Overall width
2,159 mm
(85 in)- Overall height
2,050 mm
(81 in)- Weight
8,000 kg
(17,637 lb)
Description
It realizes reduction of machining time through improved simultaneous machining performance
It realizes 3-tool simultaneous machining through overlapping control
It is equipped with two 12 station turrets to flexibly response to a wide variety of machining needs
