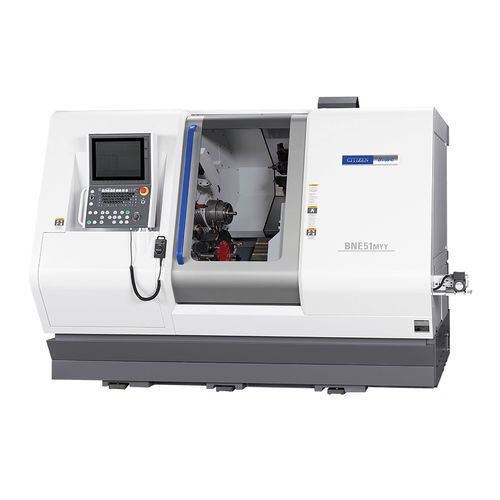

CNC automatic lathe BNE51/65MYY3-axis2-spindle24 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of spindles
- 2-spindle
- Number of tool stations
- 12 tools, 24 tools
- Turret
- double-turret
- Applications
- for bar machining
- Other characteristics
- Y-axis
- Diameter
51 mm
(2.01 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Maximum part length
195 mm
(8 in)- Rapids on X
18 m/min, 20 m/min
- Rapids on Z
18 m/min, 20 m/min
- Nominal power
7.5 kW, 11 kW, 15 kW, 18.5 kW
(10.2 hp, 15 hp, 20.4 hp, 25.2 hp)- Overall lenght
2,860 mm
(113 in)- Overall width
2,190 mm
(86 in)- Overall height
2,070 mm
(81 in)- Weight
8,080 kg
(17,813 lb)
Description
The two turrets equipped with a Y axis, and mechanical structure formed from the front and back spindles serve to reduce cycle times by enabling high-efficiency machining such as simultaneous left/right and up/down machining for superimposed and similar types of machining.
These new models have inherited the slide structure of the BNE that makes it easy to clean away chips.
Rectangular lapped slides have been adopted for all slides except for the X3 axis.
A new HMI (Human Machine Interface)-equipped operating panel with a 15-inch touch panel has been adopted to improve machine operability for workers.
