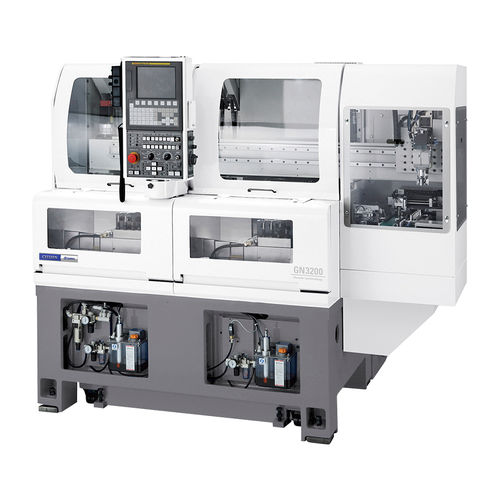

CNC turning machine GN3200W2-axis2-spindledouble-turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of spindles
- 2-spindle
- Turret
- double-turret
- Performance
- high-precision, high-productivity, high-speed
- Options and accessories
- with gantry loader
- Diameter
35 mm, 40 mm
(1.38 in, 1.57 in)- Spindle speed
Min.: 80 rpm
(502.655 rad.min-1)Max.: 8,000 rpm
(50,265.482 rad.min-1)- Maximum part length
50 mm
(2 in)- Axe X
180 mm
(7 in)- Axe Z
200 mm
(8 in)- Nominal power
1.5 kW, 2.2 kW
(2 hp, 3 hp)- Overall lenght
1,477 mm
(58 in)- Overall width
1,400 mm
(55 in)- Overall height
1,600 mm
(63 in)- Weight
2,650 kg
(5,842 lb)
Description
The GN3200W is the twin spindle version of the GN3200 which, equipped with a high speed loader, makes even higher productivity available. The machine width is 33% shorter than previous Miyano models and the required floor space has been reduced by 27%, realizing significant space saving.
Various automation needs are met by combining peripheral devices such as the high-speed gantry loader that allows selection of either one or two 2 saddles, in/out stocker, etc
