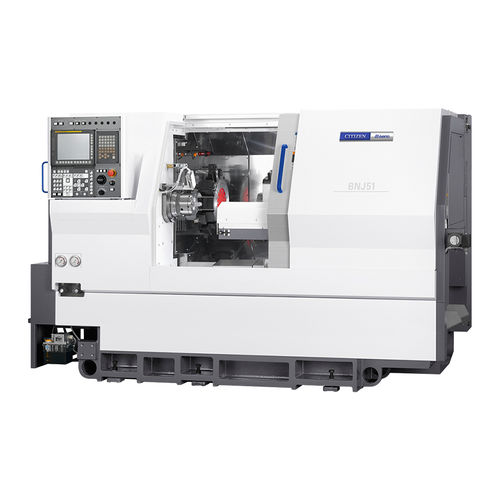

CNC automatic lathe BNJ42/51
2-axis12 tools4 tools

CNC automatic lathe
CNC automatic lathe
CNC automatic lathe
CNC automatic lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Number of tool stations
12 tools, 4 tools, 8 tools
Applications
for bar machining
Diameter

42 mm, 51 mm
(1.65 in, 2.01 in)

Spindle speed

Max.: 6,000 rpm
(37,699.112 rad.min-1)

Min.: 50 rpm
(314.159 rad.min-1)

Maximum part length

100 mm
(4 in)

Axe X

85 mm, 165 mm
(3 in, 6 in)

Axe Z

246 mm, 590 mm
(10 in, 23 in)

Nominal power

5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.5 hp, 10.2 hp, 15 hp, 20.4 hp)

Overall lenght

2,840 mm
(112 in)

Overall width

1,560 mm
(61 in)

Overall height

1,700 mm
(67 in)

Weight

5,300 kg
(11,684 lb)

Description

Processing overlap control with main spindle processing combined with separate sub-spindle movement Eccentric collet enables complex machining of cranks and other eccentric processing It makes easy side milling through the Y-axis function of main turret, thus enables machining of large-diameter screws and/or uneven parts that was impossible to conduct by conventional machines
