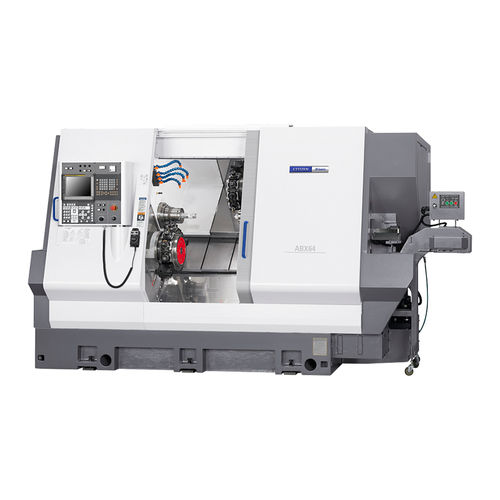

CNC automatic lathe ABX51/64SYY3-axis2-spindleA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Number of spindles
- 2-spindle
- Spindle mount
- A2-6, A2-8
- Number of tool stations
- 12 tools, 24 tools
- Turret
- double-turret
- Drive system
- servo-driven
- Applications
- for bar machining
- Performance
- high-rigidity
- Other characteristics
- Y-axis
- Diameter
51 mm, 64 mm
(2.01 in, 2.52 in)- Spindle speed
Max.: 5,000 rpm
(31,415.927 rad.min-1)Min.: 40 rpm
(251.327 rad.min-1)- Maximum part length
125 mm
(5 in)- Axe X
190 mm
(7 in)- Axe Z
550 mm, 721 mm, 756 mm
(22 in, 28 in, 30 in)- Rapids on X
16 m/min
- Rapids on Z
20 m/min, 30 m/min
- Nominal power
5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.5 hp, 10.2 hp, 15 hp, 20.4 hp)- Overall lenght
3,290 mm
(130 in)- Overall width
2,204 mm
(87 in)- Overall height
2,222 mm
(87 in)- Weight
10,750 kg, 10,900 kg
(23,700 lb, 24,030 lb)
Description
Both 2 turrets with the Y-axis function means flexible tooling without any concern for processing balance restrictions
Up to 24 high-rigidity, high-torque(40 Nm) revolving tool stations
