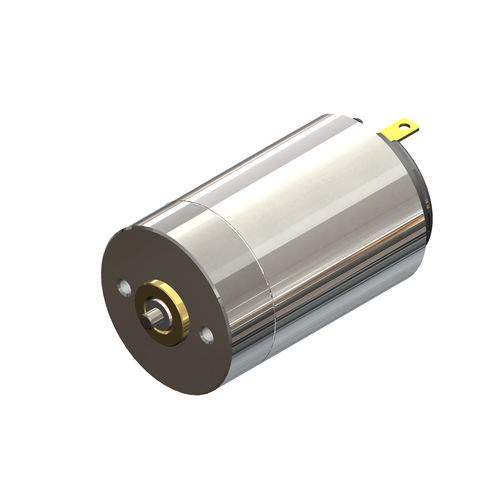

DC motor SCR16-25 series
brushed6 V24 V

DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushed
Voltage
6 V, 24 V, 12 V
Configuration
coreless
Other characteristics
with sleeve bearing
Power

Max.: 4.1 W
(0.006 hp)

Min.: 0.474 W
(0.001 hp)

Torque

0.0004 Nm, 0.0005 Nm, 0.0007 Nm, 0.0009 Nm, 0.0014 Nm
(0.0003 ft.lb, 0.0004 ft.lb, 0.0005 ft.lb, 0.0007 ft.lb, 0.001 ft.lb)

Rotational speed

Max.: 16,000 rpm
(100,530.96 rad.min-1)

Min.: 5,860 rpm
(36,819.47 rad.min-1)

Diameter

16 mm
(0.63 in)

Description

It is no exaggeration to say that DC motors are used in every corner of the environment surrounding our lives. It is widely used in various forms. For example, in terms of living, air conditioning equipment such as air conditioners, refrigerators, water heaters, etc. In terms of work, it is also used inside projectors installed in offices and ATM terminal equipment used in financial institutions. In addition, its use is expanding to housing equipment, measuring instruments, automobiles, medical equipment, etc. centering on ventilation systems. DC motors are produced in large quantities and are extremely important for the living environment and the global environment in order to suppress noise and realize energy savings.
