Diaphragm valve 100-29S

hydraulically-operatedfor controlfor seawater

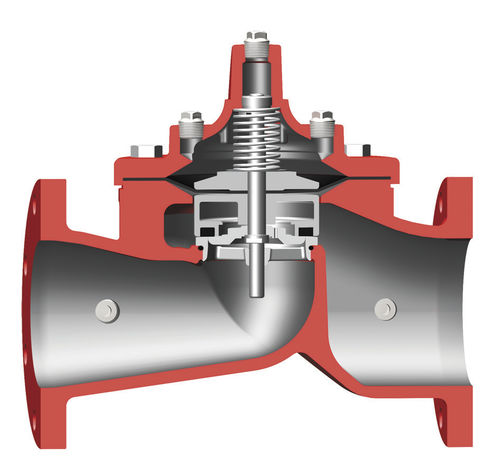

The Cla-Val Model 100-29S Seawater Service Reduced Port Hytrol Valve is a hydraulically operated, diaphragm actuated, globe or angle pattern valve. It consists of three major components: body, diaphragm assembly and cover. The diaphragm assembly is the only moving part. The diaphragm assembly is guided top and bottom by a precision-machined stem which utilizes a non-wicking diaphragm of nylon fabric bonded with synthetic rubber. A resilient synthetic rubber disc, retained on three and one-half sides by a disc retainer, forms a drip-tight seal with the renewable seat when pressure is applied above the diaphragm. The reduced cavitation characteristics of the 100-29S Seawater Service Hytrol Valve is the basis for the Cla-Val 600 Series. The rugged simplicity of design and packless construction assure a long life of dependable, trouble-free operation. It's smooth flow passages and fully guided disc and diaphragm assembly assure optimum control when used in piping systems requiring remote control, pressure regulation, solenoid operation, rate of flow control or check valve operation. Available in various materials and in a wide range of sizes. It's applications are unlimited.
