Shut-off valve 83ballelectrically-actuatedPVC
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- shut-off
- Body
- PVC
- Other characteristics
- compact, unidirectional
- DN
Max.: 2 in
Min.: 0.375 in
- Pressure
150 psi
- Temperature
70 °F
(21 °C)
Description

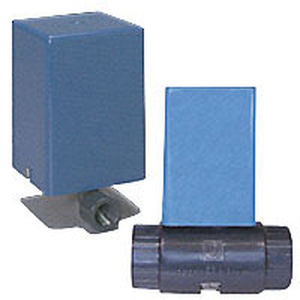

All model 83 open/close electrically actuated ball valves sizes 3/8″ thru 2″ have direct mounted unidirectional 90º turn actuators (115 Vac & 220 Vac, 12/24 AC & DC are reversing). The actuators are weatherproof (NEMA 4X), have a green lead for grounding, and all wire leads protrude from a 1/2″ NPT conduit port.
The valves are a one-piece, compact design, non-union type. O-rings are EPDM, seats are PTFE with EPDM backing cushions. PVC conforms to ASTM D1784 Cell Classification 12454-A, and CPVC conforms to ASTM D1784 Cell Classification 23567-A.
The valves are rated 150 psi at 70ºF.
