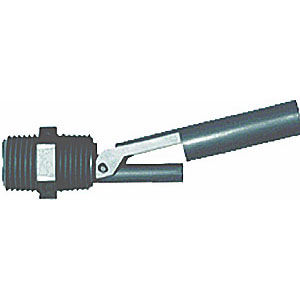

Float level switch L007 Seriesfor liquidsfor tankhorizontal
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Applications
- for tank
- Mounting
- horizontal, side-mount
- Other characteristics
- compact
- Process temperature
Max.: 300 °F
(149 °C)Min.: -13 °F
(-25 °C)- Process pressure
50 psi, 100 psi, 300 psi
Description
The L007 series horizontal mount level switches have a no-leak construction and are ideal for small tanks.
The units side-wall mount internally or externally and offer a broad range of media compatibility due to the selection of construction materials.
Model L007 operates on falling or rising level. Normally open or normally closed switch operation is easily defined by the mounting position of the switch. When normally open the float lowers with the fluid level and, conversely, when the float is mounted to rise with the fluid level, it is in a normally closed configuration.
High temperature applications can be accommodated using stainless steel construction.
Catalogs
No catalogs are available for this product.
See all of Clark‘s catalogs
