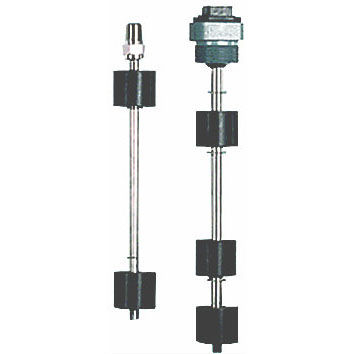

Magnetic float level switch L312, L500 Series

for liquidscompactreed switch

The L312 series level switches are individually designed from over 360 component parts to create a custom switch available in lengths from one foot (304mm) to four feet (1.2m). Switch point tolerance is +/- 1/8″ (3mm). The L500 series level switches are individually designed from over 1,400 component parts to create a custom switch available in lengths from one foot (304mm) to 11 feet (3.3m). Switch point tolerance is +/- 1/8″ (3mm). To specify, review the choices in mounting types, stem material, float size and material, switching points, and electrical specifications. Fax or call us to review. Each reed switch requires one float except in certain special applications (consult factory). For special applications, a single float can be used to activate two switch points, though these points must have a minimum separation of 1/4″ (6 mm). The maximum number of actuation levels depends on the wiring type selected.
