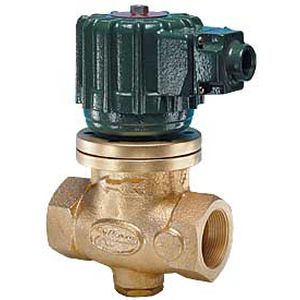

Pilot-operated solenoid valve 1314 Series
2-wayNCfor water

Pilot-operated solenoid valve - 1314 Series - Clark - 2-way / NC / for water
Pilot-operated solenoid valve - 1314 Series - Clark - 2-way / NC / for water
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for water, air, for oxygen, oil, for steam
Body
brass, stainless steel
DN

19 mm, 26 mm, 32 mm, 38 mm
(0.748 in, 1.024 in, 1.26 in, 1.496 in)

Voltage

12 V, 110 V, 124 V, 220 V, 240 V

Temperature

80 °C, 150 °C, 180 °C
(176 °F, 302 °F, 356 °F)

Pressure

Min.: 0 bar
(0 psi)

Max.: 15 bar
(217.6 psi)

Description

The Model 1314 two-way normally closed solenoid valve comes in bronze, 304 or 316 stainless steel bodies. The seal and seat materials are made of Acrylo-Nitrile, Neoprene®, Ethylpropylene, Viton®, and Teflon®; this makes them perfect for different industrial applications. The valves are capable of internally solenoid piloted operations, which are in turn, dependent on system pressure requirements. The valves can be fitted with weatherproof housing and comes in manual override options.
