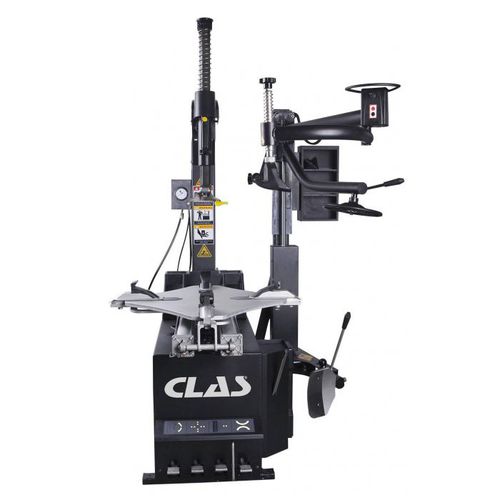

Automobile tire changer DM 1501

automatichorizontalelectric

2-speed automatic tire changer with mounting aid (assistance arm) Automatic tire changer specially adapted for the effortless mounting and dismounting of all car, utility and 4x4 tires. Equipped with the articulated bead pusher device and arm. Text - For warranty purposes, installation and start-up must be performed by a professional. Product highlight - Ideal for Run Flat or low-profile tires Specifications: - roller-supported horizontal arm - inflator with pressure gauge - max. wheel diameter: 1180mm - tire width: 3"-12" - turntable with anti-pinch device - outside clamp diameter: 10"-21" - inside clamp diameter: 12"-24" - turntable rotation speed: 6.5rpm - 2 speeds without switch: turntable rotation speed 1: 6.5rpm turntable rotation speed 2: 13rpm - ergonomic foot pedal - adjustable 2 positions bead breaker blade with protection and double acting cylinder jack - working air pressure: 8-10bar - air cleaner and oil lubricator - tubeless inflator safety valve: 3.5bar - sound level < 70 dB - power supply: 400V-50Hz - power: 0.85-1.1kW - bead breaker arm power: 2500kg - dimensions: 1900x1580x2000mm
