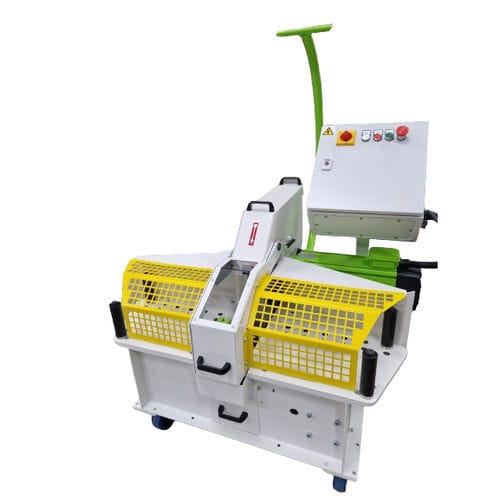

Rotary blade cutting machine M15for rubberfor hosesmanually-controlled
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for rubber
- Product handled
- for hoses
- Control type
- manually-controlled
- Tube diameter
200 mm
(8 in)- Overall length
1,260 mm
(50 in)- Overall width
950 mm
(37 in)- Height
1,515 mm
(60 in)- Weight
325 kg
(716.5 lb)
Description
For industrial hoses
• Floor-mounted model
• Equipped with 4 locking wheels
• Bevelled / serrated cutting blade: 600 x 5 x 40mm
• Protective cover equipped with a polycarbonate window for operator safety
• Single lever to bend and cut hoses
• Equipped with 2 moving fingers in order to bend different hose diameters
• Connection nozzle with aspiration system (without vacuum cleaner)
• 11 kW – 400V TRI – 50 Hz three phases electric motor
• Star-delta starting
• Rotation speed: 3000 rpm
• Protected by circuit breaker
• Electrical box with on/off switch, power indicator, emergency stop
• Working weight: 470mm
