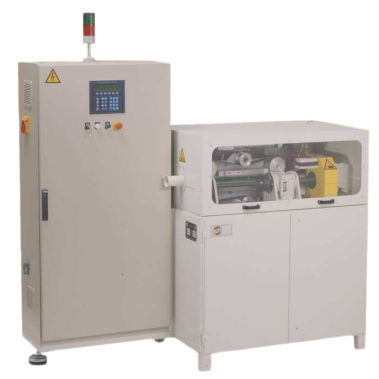

Guillotine cutting machine GA 118

for rubberfor hosesCNC

Automatic guillotine for low pressure hoses up from 11 to 40mm • Cutting operation with a lubricated circular blade numerically controlled • Hose driven by a caterpillar system digitally controlled • Tightening of the caterpillar system digitally controlled • Positioning of the coil turret with digitally controlled • Maximum uncoiling speed: 60 meters / minute Power supply: 400V TRI – 50hZ • Air supply: 6 bars • Product guided by a 12-positions coil turret • from Ø11mm to 40mm (others diameters on request) • capacity: 1000 programs : The operator selects one program number and enters the number of parts • Some messages appear on the screen, guide the operator and indicate defaults • Automatic cutting operation • Automatic loading and evacuation of the products
