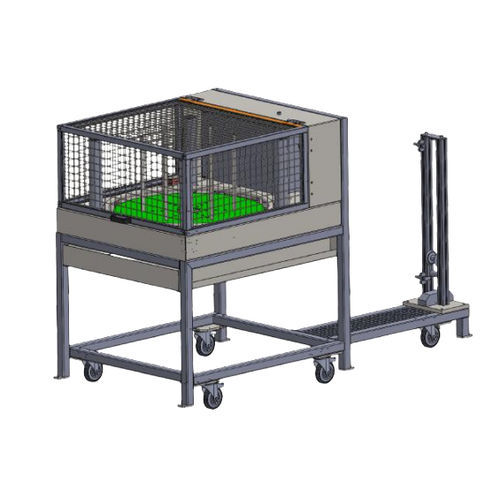

Hose unwinder DM632
automaticmotorizedrobust

Hose unwinder - DM632 - CLAVEL - automatic / motorized / robust
Hose unwinder - DM632 - CLAVEL - automatic / motorized / robust
Add to favorites
Compare this product

Go to the CLAVEL website for more information

Characteristics

Type
for hoses
Operation
automatic, motorized
Other characteristics
robust, for hydraulic applications
Roll diameter

Min.: 250 mm
(9.84 in)

Max.: 600 mm
(23.62 in)

Description

For the uncoiling of flexible hoses upstream of an automatic machine Technical specifications • Set of robust design equipped with 4 feet to facilitate its handling and its ground fixing • OPTION : Integrated control loop • Pedal operated • 0.75kW three phases gear motor powered in 400V TRI • Maximum coiler speed: from 4 to 24rpm • Working height: 1010mm • Allowable load on the tray: 400kg • Dimensions: H x W x L: 1500 x 1600 x 1600mm • Weight: 350kg
