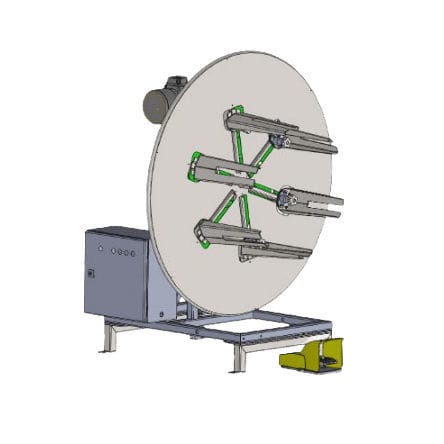

Hydraulic hose reel DM1200Vmotorizedfixed
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic hose
- Drive mechanism
- motorized
- Configuration
- fixed
- Diameter
Max.: 600 mm
(23.62 in)Min.: 250 mm
(9.84 in)- Power
750 W
- Load
300 kg
(661.4 lb)
Description
Particularly adapted for coiling flexible hoses
Technical specifications
• Solid 4-legged frame for easy handling and fixing to the floor
• Adjustable working position from 0°to 90°
• The coil diameter varies according to the different models of crowns
• Pedal-operated
• Equipped with a 400V three phases geared motor
• Maximum coiling speed: 20rpm
• Working height: 950mm
• Dimensions: H x W x L: 1382 x 1200 x 1200mm
• Weight: 150kg
