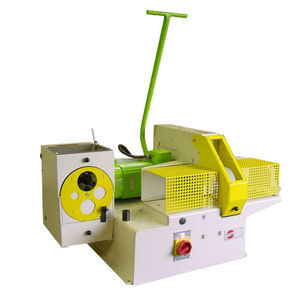

Rotary blade cutting machine TD4for rubberfor hosesmanually-controlled
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for rubber
- Product handled
- for hoses
- Control type
- manually-controlled
- Associated function
- stripping
- Applications
- for industrial applications
- Phase
- three-phase
- Configuration
- bench-top
- Other characteristics
- electric
- Tube diameter
65 mm
(3 in)- Overall length
670 mm
(26 in)- Overall width
540 mm
(21 in)- Height
780 mm
(31 in)- Weight
73 kg
(160.94 lb)
Description
For flexibles hoses up to 1’’1/2-4 wires
Technical specifications
• Bench-top model with manual control
• Single lever to bend and cut hoses
• Equipped with removable protective covers
• 3 kW – 400V TRI – 50 HZ – three phases high torque electric motor
• Direct starting, protected by heat sensor
• Equipped with 10 interchangeable gauges from Ø4, 2 to 37, 8mm
• Connection nozzle with aspiration system (without vacuum cleaner)
• Bevelled cutting blade: ø300 x 3 x 30mm Brush: Ø200 x 25 x 25mm
