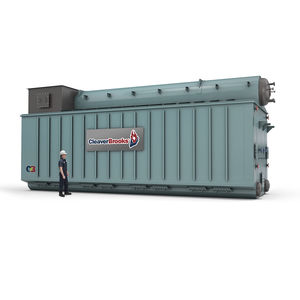

Steam boiler Modular

fuel oilnatural gasbiogas

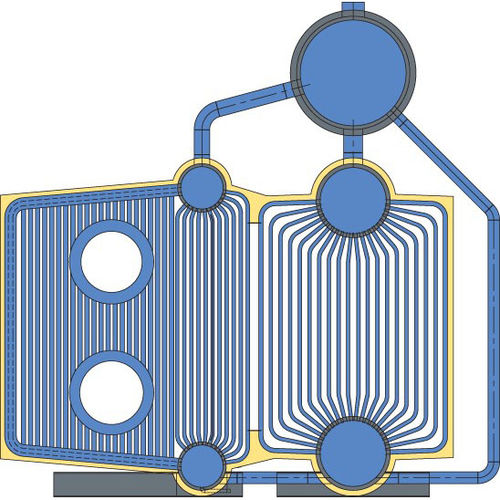

Modular designs maximize shop assembly and minimize field work. Convection or radiant superheaters. Large, water-cooled, gas-tight furnace areas. Boiler wall constructions are 100% water-cooled and refractory-free. Only single-source supplier for integrated boiler, burner, and control solutions. Can accommodate selective catalytic reduction (SCR) and CO catalyst. The Modular (MED) is a 100% membrane water-cooled furnace, reducing costly, time-consuming, annual maintenance. The front and rear walls are welded and refractory-free, as well as the burner throat, when integrated with our Natcom® burner. D-style boilers can be customized to provide superheated steam. We offer both single- and dual-stage integral superheater systems with optional temperature control over turndown. APPLICATIONS Process Steam Industrial Process Power and Utilitiesl Refineries and Petrochemical Carbon Capture Pharmaceutical Pulp and Paper Food & Beverage
