Saturated steam boiler OSSGnatural gasfuel oilwater tube
Add to favorites
Compare this product
Characteristics
- Product
- saturated steam
- Power source
- natural gas, fuel oil
- Firebox
- water tube
- Configuration
- horizontal
- Other characteristics
- industrial, low-NOx
- Power
Min.: 20 BTU/h
Max.: 200 BTU/h
- Steam production
Min.: 150,000 lb/h
(68,038.86 kg/h)Max.: 500,000 lb/h
(226,796.18 kg/h)- Pressure
2,300 psi
Description

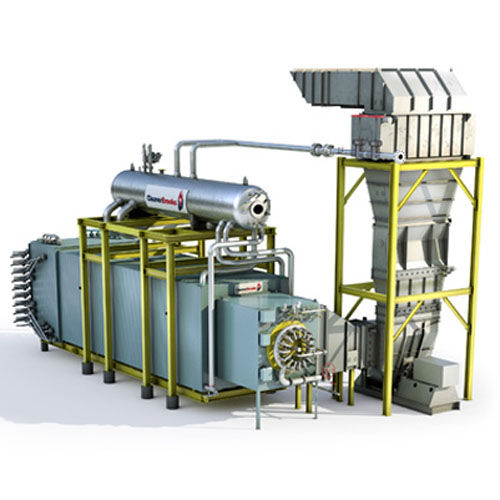

The Cleaver-Brooks Forced-Circulation Oil Sands Steam Generator (FC-OSSG) combines the benefits of a traditional D-style watertube boiler, with high steam purity and very low blowdown, and the ease of cleaning of once-through steam generators (OTSG).
PRODUCT OVERVIEW
Highly efficient steam solutions capable of meeting strict emissions requirements
Increased efficiency with minimal blowdown.
10:1 turndown.
Single-source integrated boiler/burner/control package engineered to work together.
Smaller footprint for reduced material cost and space savings.
Shipped modular for ease of installation.
100% mechanically cleanable by pigging.
This large-capacity steam generator is uniquely suited for the needs of the oil sands market and is ideal for use in SAGD applications utilizing produced water.
