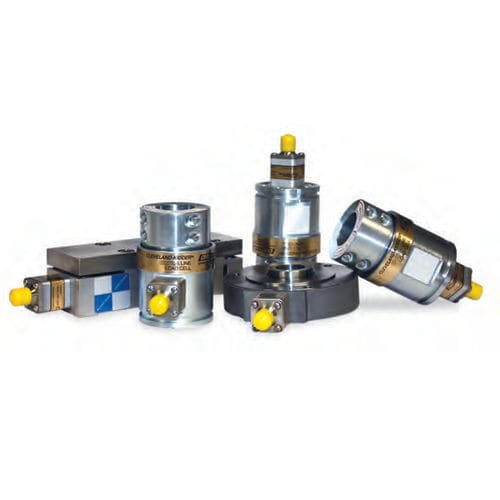

Tension load cell Ultra ISC

strain gaugewith integrated amplifierwith integrated signal processing

The Ultra ISC is a tension transducer that directly outputs a +/- 10 VDC signal. CMC offers an ISC version for all models of our Ultra tension transducers. All Ultra ISC transducers include an Integrated Signal Conditioner (ISC) that is embedded directly in the "Ultra" type tension load cells. This is accomplished by extending the connector housing one inch and inserting a proprietary integrated amplifier designed by CMC. Features • Includes an Integrated Signal Conditioner ( ISC ) • No Additional Amplifier Required • Direct +/- 10 VDC Output • Local signal conditioning minimizes electrical noise • 40:1 tension range • Factory preset zero and gain • 0 V = no load, 10 V = tension load cell rating • Available in all Ultra Line modes: Cartridge, Slim Cell, UPB, and CLT Benefits • Eliminates hardware costs of a separate amplifier • Frees up panel space • Reduces the amount of documentation drawings • Reduces wiring costs • Eliminates amplifier setup and calibration • Ability to bring signal directly to local I/O on Network • Improved diagnostic and balance capability with tension load cells scaled in controller
