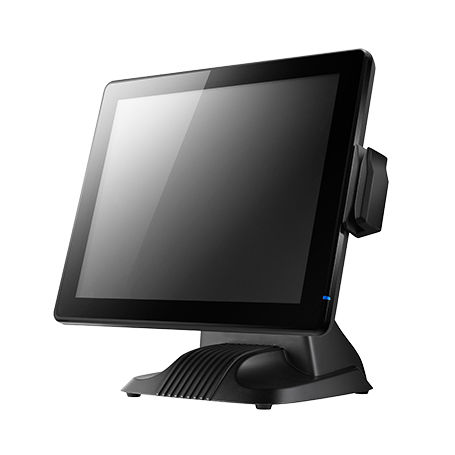

Touch screen terminal Evo670

table-topVGAIntel® Celeron J1900

Display LCD Display Size: 17" TFT LCD Max. Resolution: 1280 X 1024 Brightness: 250 cd/m2 or 350 cd/m2 Support Color: 16.7M colors Backlight: LED Touch Panel Type: Five-Wire Analog Resistive or Projected Capacitive Processor CPU/ Chipset: Intel® Celeron J1900 Quad-Core 2.0Ghz Memory DDR3L 1333 up to 8GB Storage 2.5” SATAII HDD X 1 e-SATA HDD X 1(Optional) I/O connectors USB: USB 2.0 X 2 USB 3.0 X 1 Powered COM: X 3 (D-type 9 pins powered COM with DC 5V/ 12V selection) Audio Port: Line-out X 1 Mic-in X 1 VGA: X 1 Parallel: X 1 (optional) Network LAN: X 1 (RJ45 10/100/1000 Base-T) Extend I/O board Type A: PS2(Combo) X 1, 12V/24V CD port X 1, USB X 2, RJ45(COM) X 1 Type B: PS2(Combo) X 1, 12V/24V CD port X 2, USB X 2 Type C: USB X 4, 12V/24V CD port X 1, RJ45(COM) X 1 Type D: USB X 2, 12V/24V CD port X 1, RJ45(COM) X 1, Powered 24V USB X 1 Option VFD/ 8"/ 10" Second display/ MSR/ iButton/ Fingerprint reader/ Smart Card Reader
