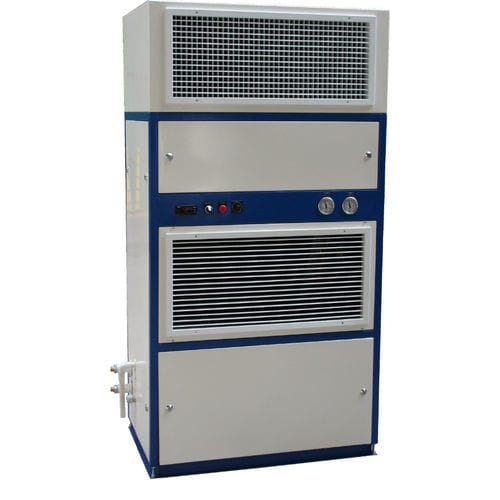

Duct air conditioner MAC

compactcommercialair-cooled

Marine air-conditioners MAC compact air conditioners are adapted to work in wheelhouses and other rooms on passenger ships, commercial vessels, platforms. Cooling capacity: 6-43kW Power supply 3x400V / 50Hz or 3x440V / 60Hz Equipment: Compressor - hermetic reciprocating compressor equipped with a heater; Shell and tube condenser with a tube insert made of Cu-Ni tubes, designed for cooling with seawater or with a Cu tubes intended for cooling with fresh water Air cooler - copper coil with aluminum fins for use in ship conditions EU2 filter Fan - centrifugal fan with an electric motor with IP55 protection. Control - the temperature is controlled by a thermostat. It is possible to choose manual or automatic operation mode. The control panel has IP55 and automatic circuit breakers. The compressor is equipped with high and low pressure switches, a liquid-side solenoid valve, filter drier, liquid side sight glasses and manometers. Optional equipment: air chamber silencer at the fresh air inlet connection for the ventilation duct of the air outlet from the air conditioner flexible connection for fresh air inlet and outlet stainless steel housing coil with copper fins electric heating automatic seawater valves refrigerant air-cooled condenser
